項目Item

內容Content

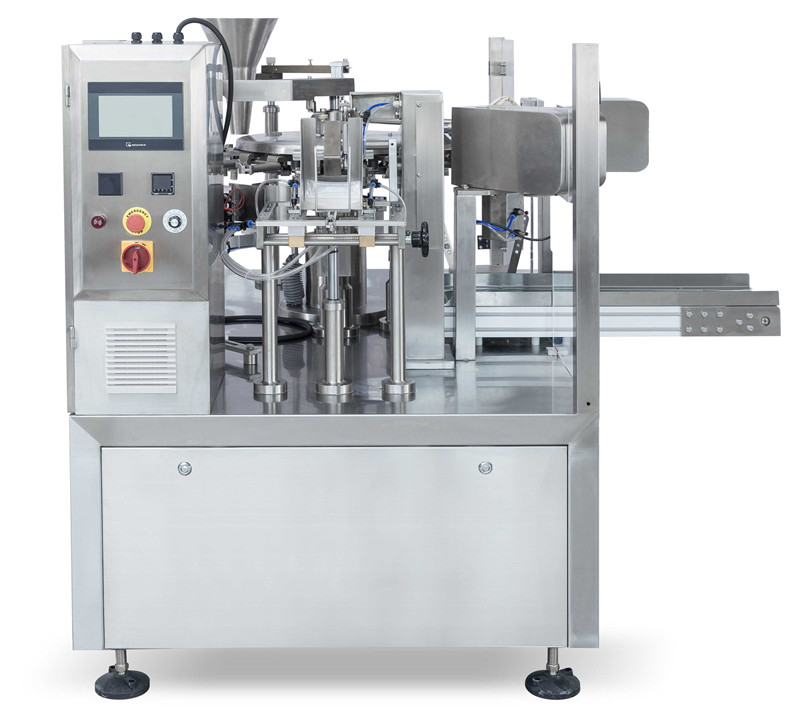

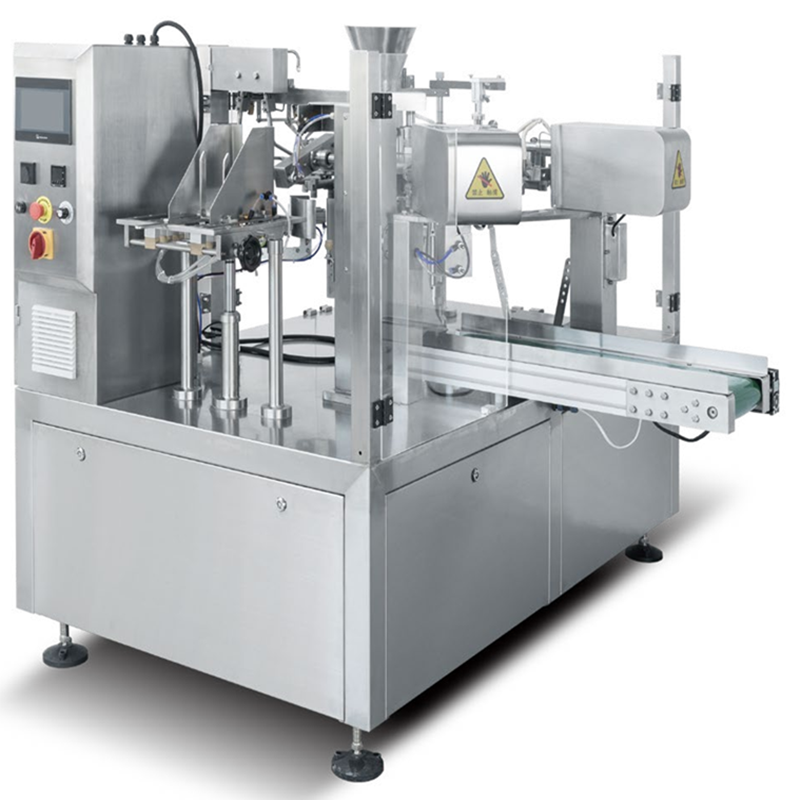

Model 型號

FJY-X8300

Machine position

機器工位

Eight position 八工位

Pouch material

袋子材質

Laminated film\PP\PE etc.複合膜\PP\PE等

Packing speed

包裝速度

*20~40 bags/min, depend on the measuring equipment, materials, product’s weight & packing film’ material.

20-40包/分，根據計量設備，物料產品重量和包裝膜質量而定

Accuracy

精度

*≤±1%, depending on the measuring equipment & materials.

*≤±1%, ，具體視計量設備和物料而定

Bag size

袋子尺寸

(L)150-450mm  (W) 200-300mm

Filling Volume

灌裝容量

10-3000g

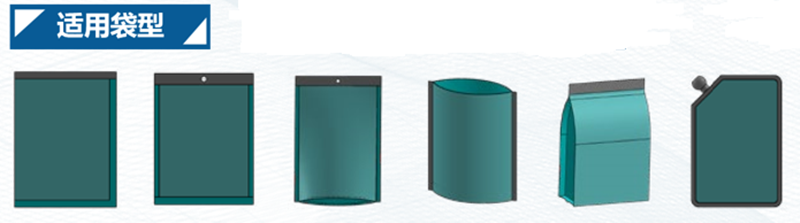

Bag type

袋型

Preformed bag: Zipper bag, Stand-up pouch, 3/4-side-seal pouch,  four edge-sealing bag, special bag etc.

預製袋：拉鏈袋，自立袋，3邊封袋，4邊封袋，異形袋等。

Air consumption

耗氣量

0.6m³/min(supply by user)

Power

電壓

2.0KW  3P 380V  50/60Hz

Dimension

機器尺寸

(L)2000 * (W)1500 * (H)1550mm

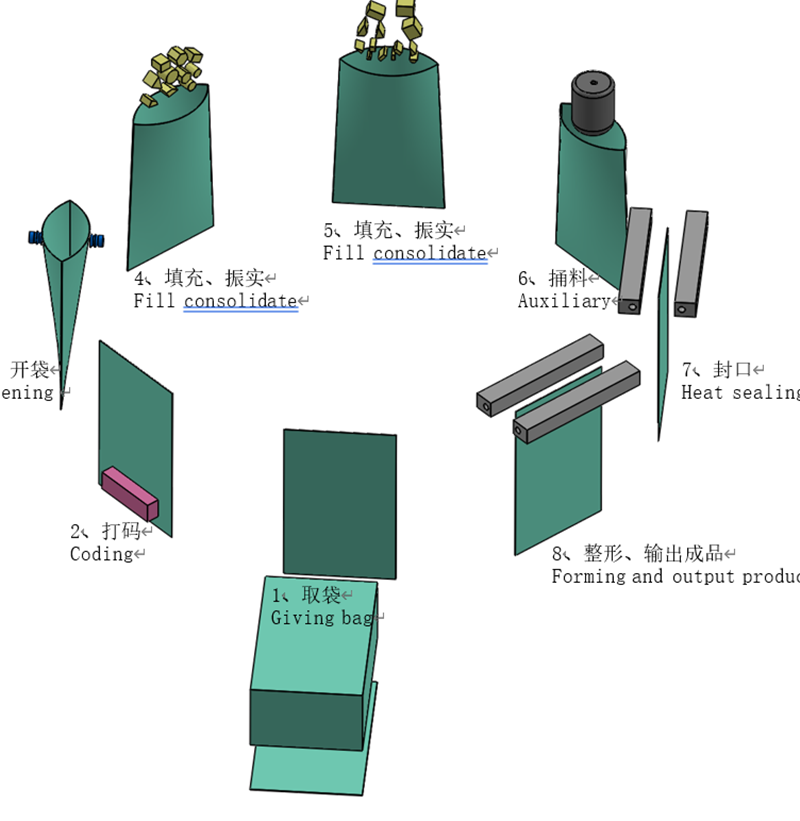

Work flow

工作流程

Giving bag→coding →opening →filling 1 →filling 2→ auxiliary→ exhaust→heat sealing→ .forming and output product

給袋-打碼-開袋-下料1-下料2-空位（捅料）-排氣-熱封-整形輸出

Applicable scope

應用範圍

1. Block material: bean curd cake, fish, eggs, candy, red jujube, cereal, chocolate, biscuit, peanut, etc

.塊裝物料：豆腐餅、魚、蛋、糖果、紅棗、麥片、巧克力、餅幹、花生等

1. Granular type: crystal monosodium glutamate, granular drug, capsule, seeds, chemicals, sugar, chicken essence, melon seeds, nut, pesticide, fertilizer

顆粒狀物料：結晶味精、顆粒劑、膠囊劑、種子、化學品、糖、雞精、瓜子、堅果、農藥、化肥

1. Powder type: milk powder, glucose, monosodium glutamate, seasoning, washing powder, chemical materials, fine white sugar, pesticide, fertilizer, etc

粉裝物料：奶粉、葡萄糖、味精、調味料、洗衣粉、化工原料、細白糖、農藥、化肥等

1. Liquid/paste type: detergent, rice wine, soy sauce, rice vinegar, fruit juice, beverage, tomato sauce, peanut butter, jam, chili sauce, bean paste

液體/糊狀物料：洗滌劑、黃酒、醬油、米醋、果汁、飲料、番茄醬、花生醬、果醬、辣椒醬、豆沙

1. Class of pickles, pickled cabbage, kimchi, pickled cabbage, radish, etc

泡菜、泡菜、泡菜、泡菜、蘿卜等

1. Other bagging materials

其他袋裝物料

Main standard parts

主要標準部件

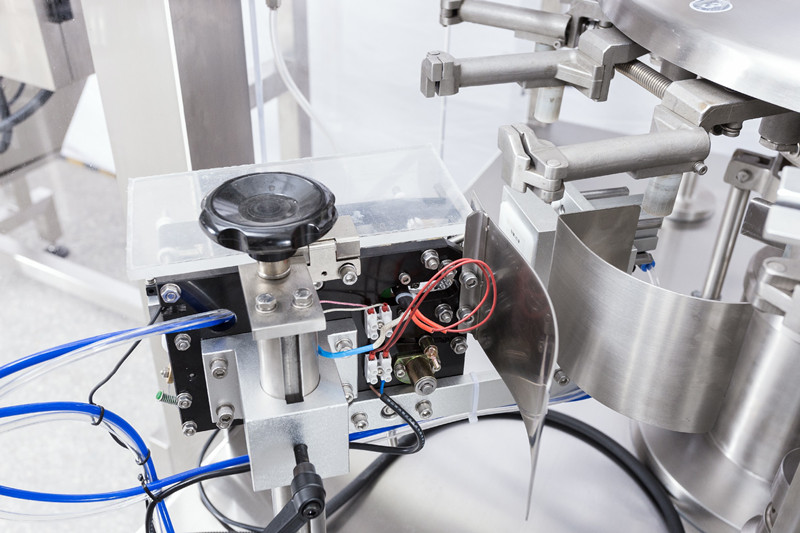

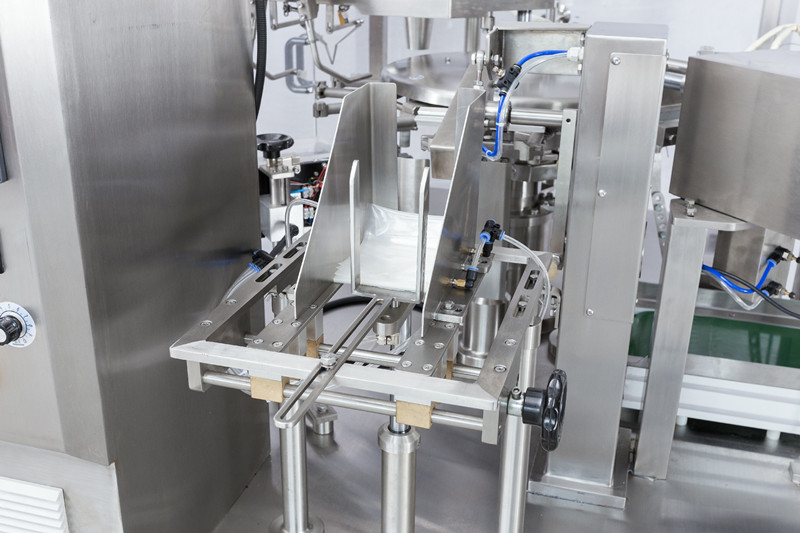

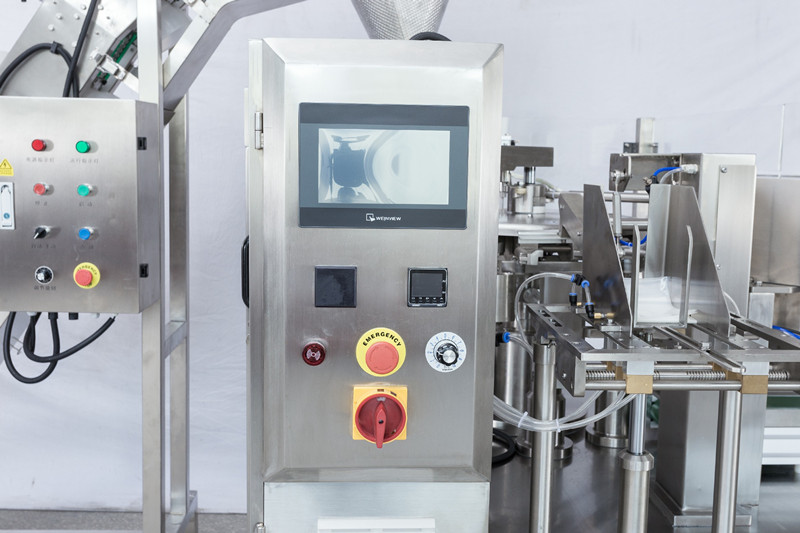

1.Code printer 編碼器 2. PLC control system  PLC控製係統  3. Bag opening device開袋裝置 4. Vibration device 振動裝置 5. Cylinder 氣缸  6. Electromagnetic valve電磁閥

7. Temperature controller 溫度控製器 8. Vacuum pump真空泵 9. Inverter 變頻器

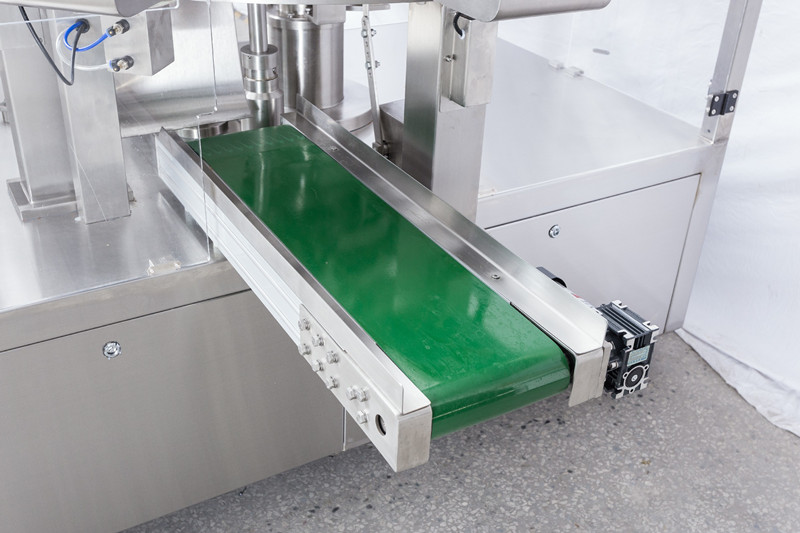

10. Output system 成品輸出係統
